H563 Blended polyol (short demould time)
Application:
Refrigerators and freezers.
Introduction:
H563 is designed for cyclo-pentane blowing system. H563 can be used on both high and low pressure foaming machine.
Preponderances:
Very short demould time
High compressive strength
Good dimensional stability
Properties:
Appearance Yellow viscous liquid
Viscosity cp, 25 Centigrade 2200-4000
Water content % 1.8-2.4
OH number mgKOH/g 380-440
Recommended formulation:
H563 pbw 100
Cyclo-pentane pbw 12-14
MDI pbw 142-148
Reaction characteristics (hand mixing, 25 Centigrade):
Cream time s 8-12
Gel time s 60-80
FRD Kg/m3 24.0-27.0
Foam performances:
Mould density Kg/m3 32.0-34.0
Initial K factor W/m.K 0.0200MAX
Compressive strength MPa 0.15MIN
Dimensional stability
-30 Centigrade, 24hrs % 0.5MAX
Demould time min 4
Packing:

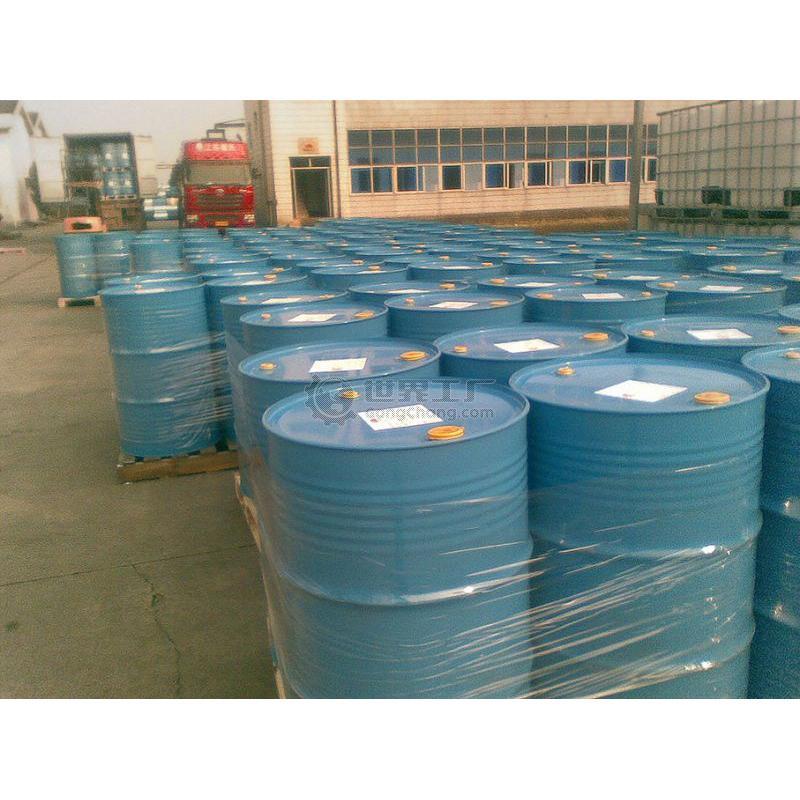

215Kg/drum, 1000Kg/IBC or 22MT/isotank
Storage and shelf life:
Environment temperature is 10-25 Centigrade. Shelf life is 6 months.
Safety data:
Please feel free to contact us for MSDS.
H539 Blended polyol (low ISO index)
Application:
Refrigerators and freezers.
Introduction:
H539 is designed for cyclo-pentane blowing system. H539 can be used on both high and low pressure foaming machine.
Preponderances:
Homogeneous density distribution
High compressive strength
Good dimensional stability
Properties:
Appearance Yellow viscous liquid
Viscosity cp, 25 Centigrade 2200-4000
Water content % 1.8-2.4
OH number mgKOH/g 380-440
Recommended formulation:
H539 pbw 100
Cyclo-pentane pbw 12-14.5
MDI pbw 135-140
Reaction characteristics (hand mixing, 25 Centigrade):
Cream time s 8-12
Gel time s 60-80
FRD Kg/m3 23.0-27.0
Foam performances:
Mould density Kg/m3 32.0-34.0
Initial K factor W/m.K 0.0200MAX
Compressive strength MPa 0.15MIN
Dimensional stability
-30 Centigrade, 24hrs % 0.5MAX
Packing:
215Kg/drum, 1000Kg/IBC or 22MT/isotank
Storage and shelf life:
Environment temperature is 10-25 Centigrade. Shelf life is 6 months.
Safety data:
Please feel free to contact us for MSDS.
H577 Blended polyol (low density)
Application:
Refrigerators and freezers.
Introduction:
H577 is designed for cyclo-pentane blowing system. H577 can be used on high pressure foaming machine.
Preponderances:
Low mould density
Good adhesive ability
Good demould ability, high compressive strength, good flowing ability
Less open cell content on the foam surface, good dimensional stability in low temperature
Properties:
Appearance Transparent to light yellow liquid
Viscosity cp, 25 Centigrade 2500-4000
Water content % 1.8-2.8
OH number mgKOH/g 350-450
Special gravity g/ml, 20 Centigrade 1.0-1.2
Recommended formulation:
H577 pbw 100
Cyclo-pentane pbw 12-14
MDI pbw 142-148
Reaction characteristics (hand mixing, 21-23 Centigrade):
Cream time s 8-14
Gel time s 60-90
Tack free time s 90-120
FRD Kg/m3 23.0-25.0
Foam performances:
Mould density Kg/m3 31.0-33.0
Initial K factor W/m.K 0.0205MAX
Closed cell contest % 95MIN
Compressive strength MPa 0.15MIN
Dimensional stability
-30 Centigrade, 24hrs % 1.0MAX
Packing:
215Kg/drum, 1000Kg/IBC or 22MT/isotank
Storage and shelf life:
Environment temperature is 10-25 Centigrade. Avoid insolating and raining. Shelf life is 6 months.
Safety data:
Please feel free to contact us for MSDS.
H566 Blended polyol (low K factor)
Application:
Refrigerators and freezers.
Introduction:
H566 is designed for cyclo-pentane blowing system. H566 can be used on high pressure foaming machine.
Preponderances:
Low K factor
Good adhesive ability
Short demould time, flowing ability
High compressive strength, good dimensional stability on low temperature
Properties:
Appearance Transparent to light yellow liquid
Viscosity cp, 25 Centigrade 2500-4000
Water content % 1.8-2.8
OH number mgKOH/g 350-450
Special gravity g/ml, 20 Centigrade 0.9-1.3
Recommended formulation:
H566 pbw 100
Cyclo-pentane pbw 12-14
MDI pbw 140-145
Reaction characteristics (hand mixing, 21-23 Centigrade):
Cream time s 8-14
Gel time s 50-80
Tack free time s 90-120
FRD Kg/m3 24.0-27.0
Foam performances:
Mould density Kg/m3 33.0
Initial K factor W/m.K 0.0195MAX
Closed cell contest % 95MIN
Compressive strength MPa 0.16MIN
Dimensional stability
-30 Centigrade, 72hrs % 1.0MAX
Packing:
215Kg/drum, 1000Kg/IBC or 22MT/isotank
Storage and shelf life:
Environment temperature is 10-25 Centigrade. Shelf life is 6 months.
Safety data:
Please feel free to contact us for MSDS.
